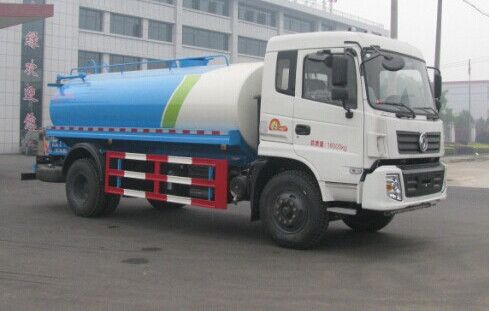

東風145灑水車（中潔牌XZL5160GSS5型灑水車 ）
In dongfeng 145 sprinkler (jie brand XZL5160GSS5 type sprinkler)
工信部公告 278
Miit announcement of 278
底盤型號 EQ1160GD5DJ
Models EQ1160GD5DJ chassis
裝水噸位（T） 10.3
Water tonnage (T) 10.3
車輛參數 整車尺寸(長寬高mm) 8200×2490×3050
Vehicle parameters of vehicle size (dimensions in mm) 8200 * 2490 * 2490
總質量 15800
Total mass (kg) 15800
額定載質量 9850
The rated load quality (9850 kg)
整備質量 5755
Curb weight (5755 kg)
接近角/離去角 23/15
Nearly 23/15 Angle/departure Angle (mm)
前懸/后懸 1440/2260
Hung suspended before/after 1440/2260 (mm)
燃油種類 柴油
Type diesel fuel oil
**車速 80
A top speed of 80
發動機參數 型號 ISD180 50
Engine parameter model ISD180 50
排量/功率 4500/132
Displacement / 4500/132 power (kw)
生產廠家 東風康明斯發動機有限公司
Dongfeng cummins engine co., LTD
型式 直列六缸電控高壓共軌柴油機
Type inline six-cylinder electronically controlled high pressure common rail diesel engine
底盤說明 驅動型式 2*4
The chassis drive type 2 * 4
軸距 4500
The wheelbase (4500 mm)
輪距(前/后) 1900/1860
1900/1860 wheel track (before/after)
前橋描述
Front axle description
后橋描述
Rear axle description
轉向器說明 雙輻條式方向盤，動力轉向。
Double spoke type steering wheel steering instructions, power steering.
變速箱描述
The gearbox to describe
離合器描述 膜片彈簧離合器，液壓遠距離操作，帶氣壓伺服助力器。
Described the clutch diaphragm spring clutch, hydraulic remote operation, pneumatic servo booster.
制動系統說明 雙管路氣制動系統，帶駐車制動、排氣制動。
Braking system double pipe air brake system, parking brake, exhaust brake.
駕駛室 平頭單排
Bridge of single flat
鋼板彈簧片數(前/后) 8/10+7
Steel plate spring leaf number 8/10 + 7 (before/after)
輪胎規格 10.00R20
10.00 R20 tire specifications
空調 帶空調
Air conditioning with air conditioning
國五東風12噸灑水車底盤配置說明：
The five dongfeng 12 tons of sprinkler chassis configuration instructions:
1、發動機主要采用，東風康明斯180馬力發動機或者玉柴180馬力二款國五排放的發動機。
1, engine mainly adopts, dongfeng cummins 180 - horsepower engine or two countries five emissions of yuchai 180 - horsepower engine.
2、變速箱采用，陜齒小八檔變速箱。
2, gearbox, shan small eight teeth gear transmission.
3、輪胎規格：10.00-20尼龍?zhí)セ蛘?0.00R20鋼絲胎。
3, tire specifications: 10.00-20 nylon tire or 10.00 R20 wire tire.
4、前橋5噸、后橋10噸。
4, 5 tons of front axle, rear axle 10 tons.
5、原裝ABS、電動玻璃。
5, the original ABS, electric glass.
6、東風12噸灑水車駕駛室可以選擇，新款豪華駕駛室，也可以選擇老款東風駕駛室。
June 12 tons of sprinkler, dongfeng bridge can choose, the new luxurious cab, dongfeng bridge can also choose the old one.
